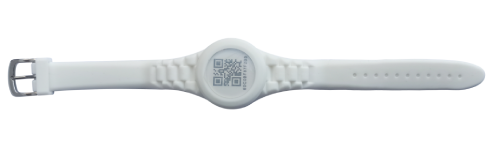

QUUPPA TRACKABLE or QUUPPA EMULATED PRO-WB100 WRISTBAND
Description – Application
The WB100 WRISTBAND is proposed with QUUPPA TRACKABLE or QUUPPA EMULATED PRO technology. The Wristband is designed to full fill all requirements for people flow management and secure access control use cases.
Thanks to its ultra-low power consumption, the wristband guaranties un-surpassed battery lifetimes.
Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
The wristband is equipped with a push button function.
Company logos, QR codes, MAC address or serial numbers could be printed on the watch part of the device.
An optional NFC function can be added in order to provide extra functionalities as registration, access control or micro-payments.
Options
The WB100 WRISTBAND is proposed with QUUPPA TRACKABLE or QUUPPA EMULATED PRO technology.
The WB100 WRISTBAND can be offered with :
- NFC function to provide extra functionalities as registration, access control or micro-payments
- LED
The WB100 WRISTBAND can be proposed in different colors and with an extra barcode or QR code using silkscreen or Offset printing as well as laser engraving technology.
Characteristics
| Technology |
Quuppa Trackable or Quuppa Emulated Pro Accelerometer sensor Switch Optional additional NFC Forum Tag |
| Standards |
Quuppa ISO/IEC15693 (NFC Forum Tag Type 5) ISO/IEC14443 (NFC Forum Tag Type 2)
|
| Battery Lifetime | Up to 5 years depending on Wristband parameters |
| Reading Range |
Up to 100 meters for Quuppa LOS of 200 meters Up to 10 cm for the NFC interface (option) |
| Accelerometer Sensor | User-selectable full scales of ±2g / ±4g / ±8g / ±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz |
| Dimensions | Tag : 36.5 x 32 x 11 mm – Band : 241 mm |
| Material | Silicon and stainless-steel closure |
| Thermal Properties | – 30 to + 60 °C / – 22 to + 140°F |
| Chemical Properties | IP67 (1m, 24h) |
| Certificates | Bluetooth®, CE, FCC, ISED, Quuppa, RoHS & REACH conform. Conflict free sourcing www.conflictfreesourcing.org |
